RST 转子

SPECIFICATIONS

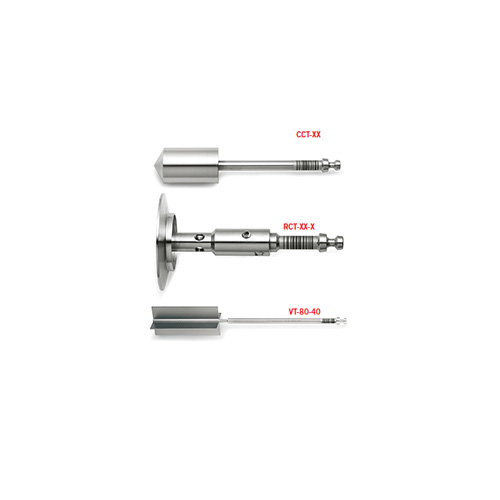

RST Spindle			RS Rheometers with serial numbers beginning with “302” and “303” use different spindles. Call for details.
SPINDLE	VISCOSITY RANGE	SHEAR RATE		MAX. SHEAR STRESS	SAMPLE VOLUME
COAXIAL	Pa•s	sec-1		Pa	mL
CCT-DG	0.00005-4.07K	0.043-5.64K		177	15.7
CCT-40	0.0003-27.6K	0.0215-2.79K		594	68.5
CCT-25	0.002-177K	0.013-1.67K		2.28K	16.8
CCT-14	0.012-1M	0.013-1.68K		13K	3.4
CCT-8	0.065-5.41M	0.013-1.672K		69.6K	1.0
CONE	Pa•s	sec-1		Pa	mL
RCT-25-1	0.005-407K	0.06-7.8K		24.4K	0.1
RCT-25-2	0.01-814K	0.03-3.9K		24.4K	0.2
RCT-50-1	0.0006-50.9K	0.06-7.8K		3.05K	1.0
RCT-50-2	0.0012-101K	0.03-3.9K		3.05K	2.0
RCT-75-1*	0.0002-15K	0.06-7.8K		905	2.5
RCT-75-2*	0.0004-30K	0.03-3.9K		905	5.0
PLATE	Pa•s	sec-1		Pa	mL
RPT-25	0.03-2.49M	0.013-1.7K		32.6K	0.5
RPT-50	0.002-155K	0.027-3.4K		4.07K	2.0
RPT-75*	0.0004-30.7K	0.04-5.1K		1.2K	4.5

VANE SPINDLE	VANE LENGTH (mm)		VANE DIAMETER (mm)	SHEAR STRESS (Pa)
VT-10-5		10	5	330-210K
VT-20-10		20	10	41-27K
VT-20-20		20	20	9-5.9K
VT-30-15		30	15	12-8K
VT-40-20		40	20	5.2-3.4K
VT-40-40		40	40	1.2-740
VT-50-25		50	25	2.7-1.7K
VT-60-8		60	8	24-15K
VT-60-15		60	15	7-4.3K
VT-60-30		60	30	1.6-1K
VT-80-40		80	40	0.7-420
VT-80-70		80	70	0.2-120

*For use with water bath version only. 1 Pa · s = 1,000 cP K = 1 thousand M = 1 million
Note: 1. Values based on minimum speed of 1 RPM and maximum speed of 1000 RPM
2. 75 mm plates cannot be used with Peltier Plate or electrically heated rheometers
